Peristaltic Filling pump & Customizable filling machine

Peristaltic Filling pump & Customizable filling machine

    Precio unitario: 1000~3000 USD
    Cantidad de pedido mínima: 1 Set/Sets
    Paquete: 1. carton with plastic foam 2. follow client`s requirement
    productividad: 1000sets per set
    Marca: Chuangrui
    transporte: Ocean,Land,Air,Express
    Lugar de origen: China
    Capacidad de suministro: 1-3 sets 7days; above 3 sets, can be negotiated
    Certificados : CE, ISO9001
    HS-Code: 9026100000
    Hafen: Tianjian,Shanghai,Beijing

Información básica

Modelo: UTF01

Descripción del producto


Peristaltic Filling pump & Customizable filling machine



Multi-channel peristaltic Pump Filling System UTF (Ultra Filling System)could work alone to dispense the liquid material into the bottles or other containers with our filling nozzles and filling stand , and also could be integrated in and controlled by the packing machine for a complete automatic production system. It can be controlled by start-stopPassive signal control,Which can work with your various sensor.It also accept active signal control customized.

The dispensing peristaltic pump is expandable from 2 to 32 channels based on the production line exact requirement.

The multichannel peristaltic pumps is specially designed for multi-channel fast filling of various liquid materials. It supports single-channel membrane button fine-tuning to quickly meet customer calibration needs. At the same time, it supports high-precision calibration in combination with a balance or measuring cup. The pump head can choose 3 rollers, 4 rollers, 6 rollers, etc. to meet the different pulsation requirements of customers, and at the same time, a customized damper can be used with the filling machine to achieve stable and high-precision filling.

The chemical liquid filling pump can be used for foot switch to control semi-automatic manual filling, and can also be integrated into various production lines that require liquid material filling, such as vaccine filling machines, blister machines, cosmetic filling machines, food packaging machines, etc. The unique external signal control of the filling pumps can be perfectly combined with the customer's equipment. It is a good helper for various multi-channel, high-precision and high-efficiency liquid filling pumps.

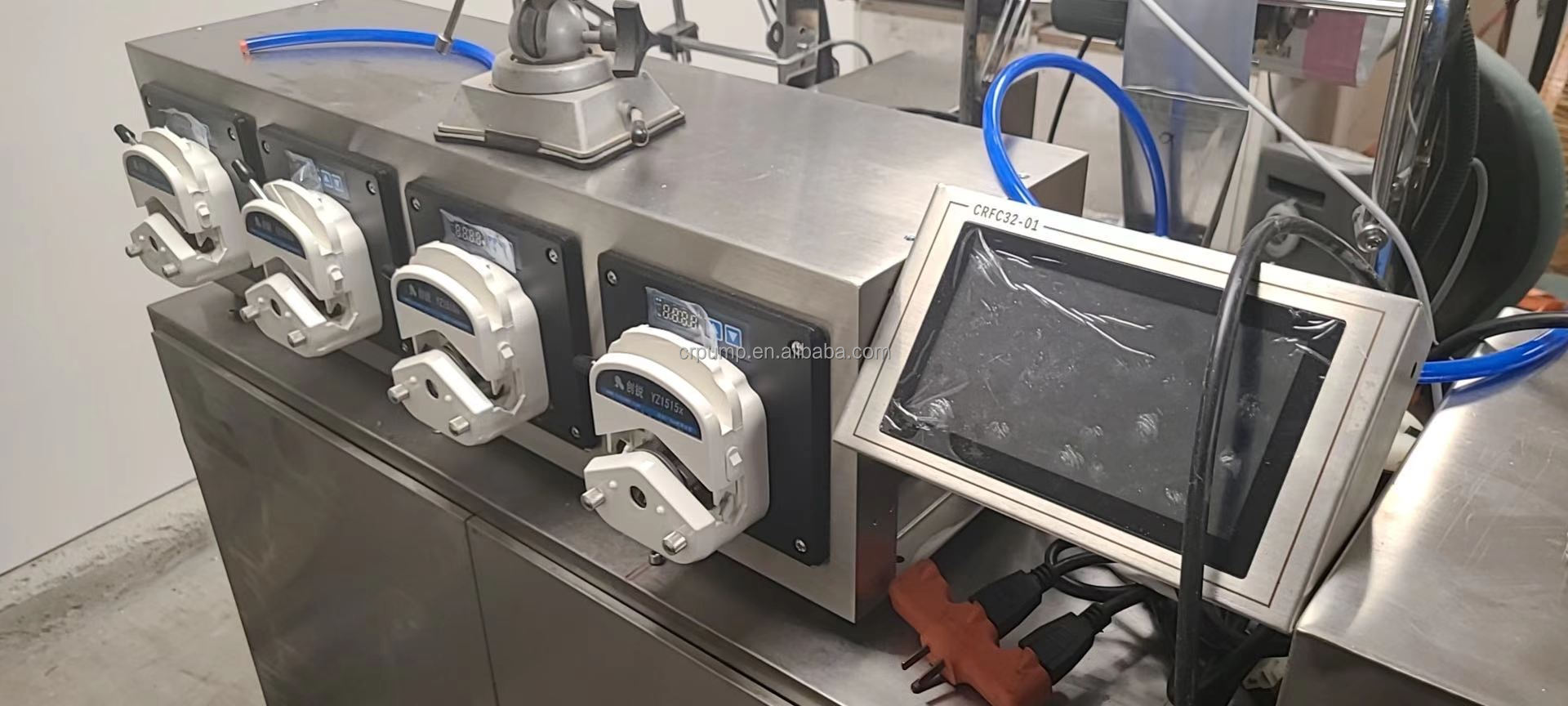

Peristaltic Pump Filling System


UTF01 is a multi-channel filling peristaltic pump independently developed by Chuangrui Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels (2 3 4 5 6 optional), which can be expanded up to 32 channels. UTF01 can be installed with multiple types of pump heads and adapted to multi-specification tubes, which can fully meet customer application needs and provide more flow selection. Various functions, large screen display, touch screen operation, accurate flow, make filling production more peace of mind. Multiple channels can be opened at the same time for liquid filling, or the filling value of each channel can be set individually for filling. Support customized solutions.
Peristaltic Pump Filling System
Transfer Peristaltic Pump Features:



2 nozzles 4 nozzles 6 nozzles Multiple Channels Liquid Filling Peristaltic Pump
This chemical liquid pump system support PLC control which can work with your packing machine.
Support Nozzles number customized to meet your production requirement .


Dispensing Peristaltic Pump Order guide
UTF01 is a filling peristaltic pump independently developed by Chuangrui Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels (2 3 4 5 6 optional), which can be expanded up to 32 channels. UTF01 can be installed with multiple types of pump heads and adapted to multi-specification tubes, which can fully meet customer application needs and provide more flow selection. Various functions, large screen display, touch screen operation, accurate flow, make filling production more peace of mind. Multiple channels can be opened at the same time for liquid filling, or the filling value of each channel can be set individually for filling. Support customized solutions.
Automatic Fill Peristaltic Pump Specifications
Model
UTF01
Pump head
YZ2515x
Channel number
4 is standard
Max 32 channels
Pump head in series
1 is standard
Max 2 heads for each channels
Filling volume
0.1ml-9999.99ml/time
Display adjustment resolution: 0.01ml
Filling time
0.1s-9999.9s/time
Display adjustment resolution: 0.1s
Filling times
0-9999time
"0" is an infinite loop
Back suction speed
0-1000°
Display adjustment resolution: 1°
Back suction delay
0-300rpm
Display adjustment resolution: 1rpm
Interval time
0.5s-9999.9s/time
Display adjustment resolution: 0.1s
Channels number
channel / unit (standard),23456 channel / unit (optional)
Scalable up to 32N4
Back suction delay
0s-60s
Display adjustment resolution: 0.1s
Power supply
 220v or 110v optional
External Control
start-stop cable // No bottle no filling function can work with your sensor or PLC.
Suitable pump head & Flow reference  (ml/min)
Pump
head
YZ1515x YZ2515x DG1~12(6) DG1~12(10) TX315 KZ25
0.1-600rpm 0.1-600rpm 0.1-100rpm 0.1-100rpm 0.1-400rpm 0.1-300rpm
Tube 13|14|19|16|25|17|18# 15# 24# 0.5*0.8,1*1,2*1,2.4*0.8,3*1 13|14|19|16|25|17|18# 15|24|35|36#
UTF01 0.007-2280 0.17-1740 0.002~36 0.0015~27 0.008-2000 1-3000


Noted:
1.The defaulted model we will send is UTF0104Y2W1 with silicon tube 24#
2.Defaulted channel number is 1 ,If you need multiple pls contact us

3, Support multiple channels customized, more info ,pls contact us



Order Number
Model
Pump head
Channel number
Pump head in series
Tube model
Max Flow per head
UTF0102Y2W1
UTF01
YZ2515x(White)
2
1
18#
2280ml/min
UTF0104Y2W1
4
UTF0108Y2W1
8
UTF0112Y2W1
12
UTF0116Y2W1
16
UTF0120Y2W1
20
UTF0124Y2W1
24
UTF0128Y2W1
28
UTF0132Y2W1
32
Tube specifications for the pump tube of  YZ2515x . Suitable for litter thicker liquid .
Noted : The standard tube which will come with the pump is model 24#, If you need other tube model , pls contact our sales in advance.
Tube model
ID
(mm)
OD
(mm)
Standard material
Max Flow
(ml/min)
Filling capacity
Filling speed
(times per hour)
24#
6.4
11.2
Silicon tube
1740
20-100 ml
600-2400
15#
4.8
9.6
Silicon tube
1020
10-50 ml
900-2500

Application For cosmetic filling


Application For the Pharmaceutical filling

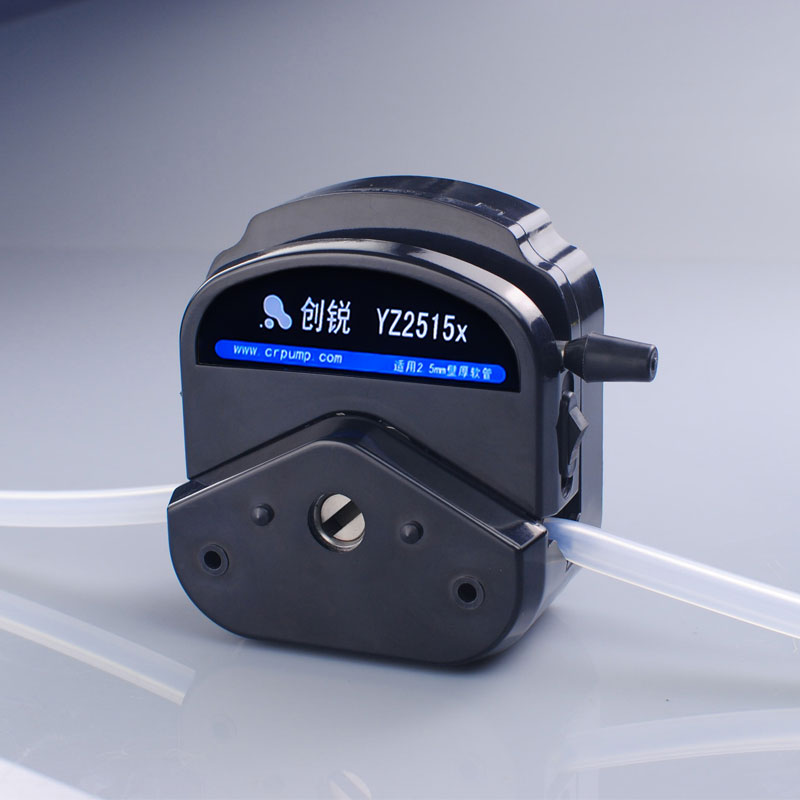

Pump head with PPS material (Black)

Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /
etc
..

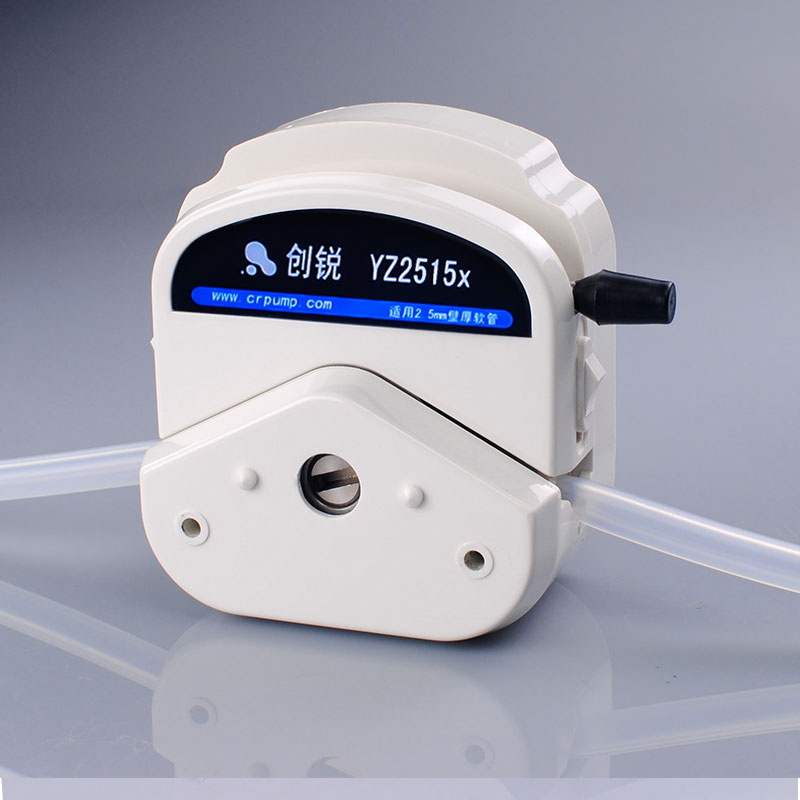

Pump head with PSF material (White)

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.
Cosmetic Transfer Pumps Order Guide

Dear All,

Very glad to meet you in our website .

To help you find the suitable pump ,can you help us to confirm some details as below :

1, what kind of liquid you will fill ? is it corrosive ? Can it flow as water ?

2,What's your filling volume per dose ?

3, How many nozzles you need for each dose ?

4, Do you need the pump work with your production line ?

More details will help us to introduce the most suitable pump to you.

Thanks for your time.

CR PUMP TEAM
